Описание

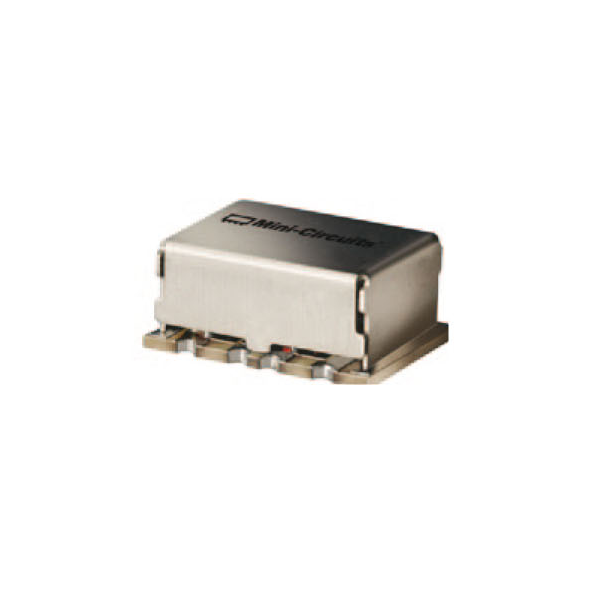

Техническое описание на SYVA-16+ Аттенюатор : 50Ω 10 to 16 MHz Maximum Ratings RF IN 1 CONTROL 1* 8 CONTROL 2* 5 RF OUT 4 GROUND 2,3,6,7 Operating Temperature -40°C to 85°C Storage Temperature -55°C to 100°C Control Voltage 6V Control Current 10 mA RF Input Level +15 dBm Features • low insertion loss, 0.9 dB typ. • high attenuation, 35 dB typ. • excellent return loss, 28 dB typ. Applications • variable gain amplifi er • feed forward amps • ALC circuits
