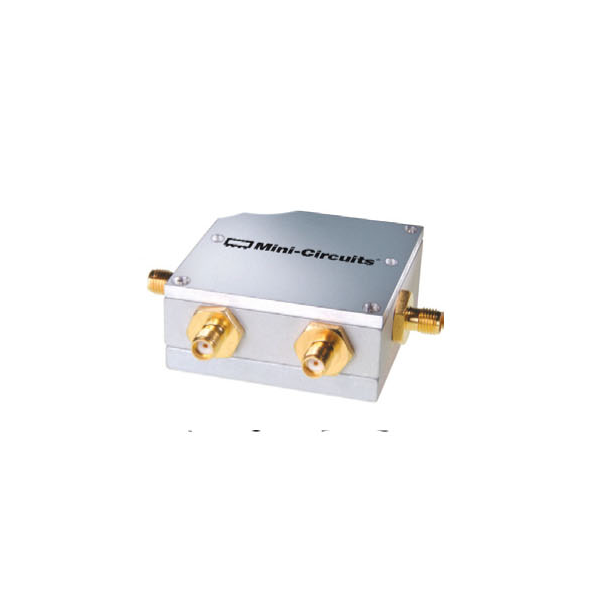

Техническое описание на ZABDC20-2400-S Направленный ответвитель : 50Ω Up to 10W 1500 to 2400 MHz Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C DC Current 1.0A Features • excellent directivity, 25 dB typ. • low mainline loss, 0.3 dB typ. • high power, up to 10W • rugged shielded case • DC current through input to output 1.0A Max. at 1.0 watt RF input power. Applications • PCS/DCS/UMTS • power leveling & monitoring • VSWR measuremen
