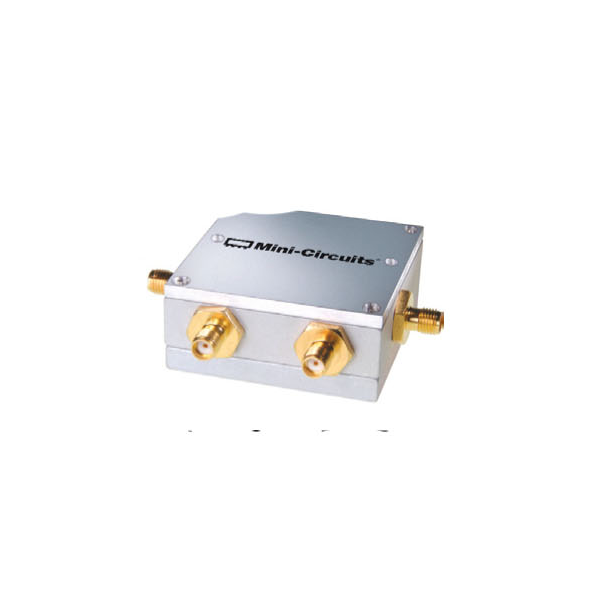

Техническое описание на ZABDC20-252H-N+ Направленный ответвитель : 50Ω Up to 100W 800 to 2500 MHz Maximum Ratings Coaxial Connections INPUT 1 OUTPUT 4 COUPLED (forward) 2 COUPLED (reverse) 3 Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C DC Current 2.0 A Features • excellent mainline loss, 0.17 dB typ. • excellent directivity, 28 dB typ. • high power, up to 100W • rugged shielded case • DC current through input to output 2.0A Max. at 50 watt RF input power Applications • PCS/DCS/UMTS • power leveling & monitoring • VSWR measuremen
