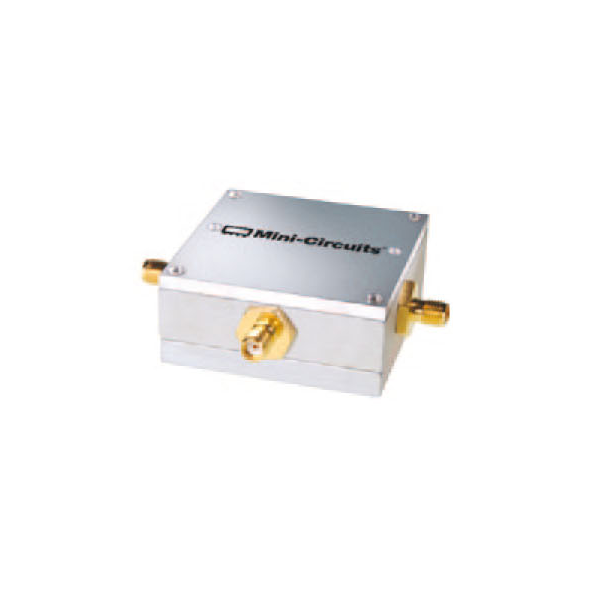

Техническое описание на ZADC-10-17W-S Направленный ответвитель : 50Ω Up to 5W 800 to 1900 MHz Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C DC Current 1.0A • low mainline loss, 0.8 dB typ. • excellent directivity, 24 dB typ. • power input up to 5W • DC Current through input to ouput 1.0A Max. Applications • GSM • PCN • instrumentation • cellular
