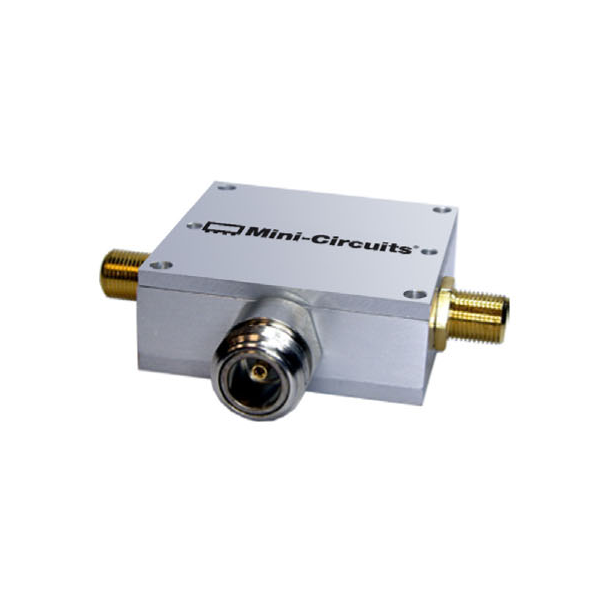

Техническое описание на ZADC-20-7550DC+ Направленный ответвитель : 75Ω/50Ω Up to 5W 800 to 1450 MHz Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C DC Current 2A Features • wideband, 800 to 1450 MHz • low insertion loss, 0.8 dB typ. • good directivity, 25 dB typ. • 75 ohm for IN and OUT ports, 50 ohm for coupled port • DC current through input to output 2A Max. Applications • cellular • PCS • labs
