Описание

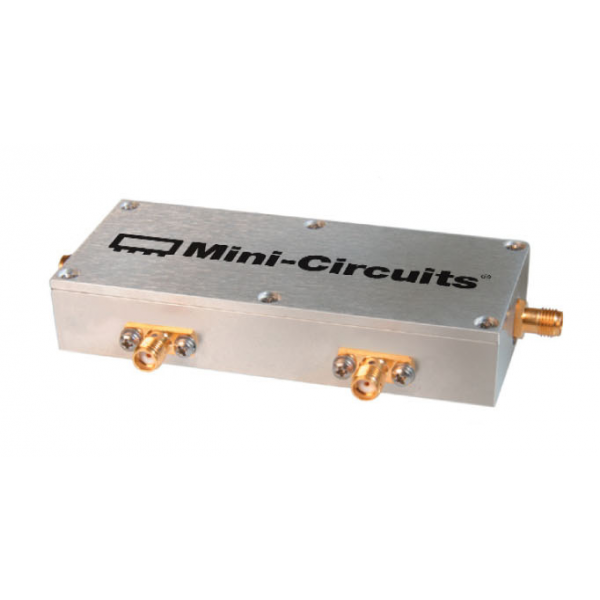

Техническое описание на ZBDC25-2575W-S+ Ответвитель : 50Ω Up to 20W 1270 to 2575 MHz Maximum Ratings Coaxial Connections Features • GPS • PCS • LAB use INPUT J1 OUTPUT J2 COUPLED (forward) J4 COUPLED (reverse) J3 • wide frequency range, 1270 to 2575 MHz • good coupling flatness, ±0.1 dB typ over 1700-2200 MHz • high directivity, 30 dB typ. • very goodVSWR, 1.05:1 typ. • high power, 20W • DC Current through input to ouput 2.5A Max. at 1.0 watt RF input. Applications OperatingTemperature -55°C to 100°C StorageTemperature -55°C to 100°C DC Current 2.5A
