Описание

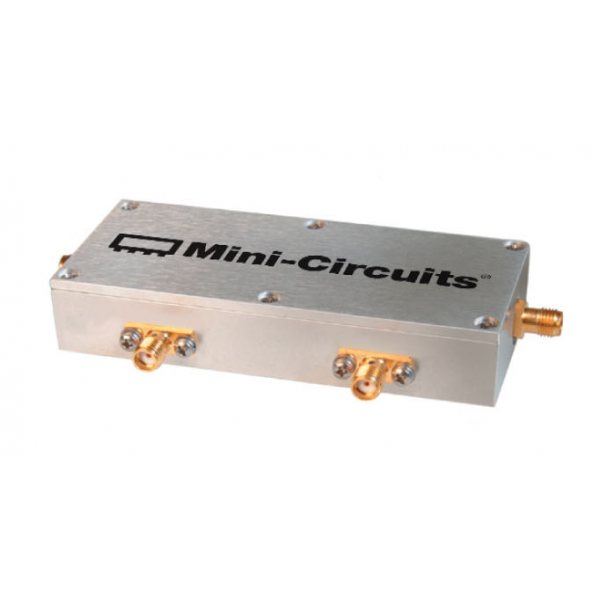

Техническое описание на ZBDC40-1450W-S+ Ответвитель : 50Ω Up to 50W 550 to 1450 MHz OperatingTemperature -55°C to 100°C StorageTemperature -55°C to 100°C DC Current 2.5A Features • cellular • lab use INPUT J1 OUTPUT J2 COUPLED (forward) J4 COUPLED (reverse) J3 • wide frequency range, 550 to 1450 MHz • good coupling flatness, ±0.2 dB typ over 800-1000 MHz • high directivity, 25 dB typ. • very good return loss,VSWR 1.1:1 typ. • high power, up to 50W • very low coupling temperature variation, ±0.1 dB typ. • DC current through input to output 2.5A Max. at 50watt RF input power.
