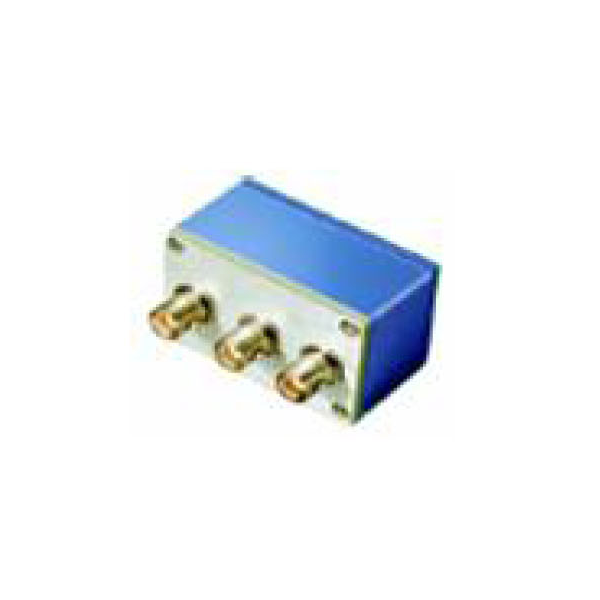

Техническое описание на ZDC-10-2 Направленный ответвитель : Important Note This is a non-catalog model and can be manufactured on specific request. Pricing and delivery information can be supplied upon request. Parameter Min. Typ. Max. Units Frequency 250 1000 MHz Coupling Nominal 10.5 ± 0.5 dB Flatness ± 0.5 dB Mainline Loss * 250-500 MHz 1.10 1.40 dB 500-1000MHz 1.60 1.90 dB Directivity 250-500 MHz 25 40 dB 500-1000MHz 15 20 dB VSWR 1.5 (:1) Power Input 500-1000MHz 4.0 W Notes: * Mainline loss includes theoretical coupled power loss of 0.405 dB at 10.5 dB coupling.
