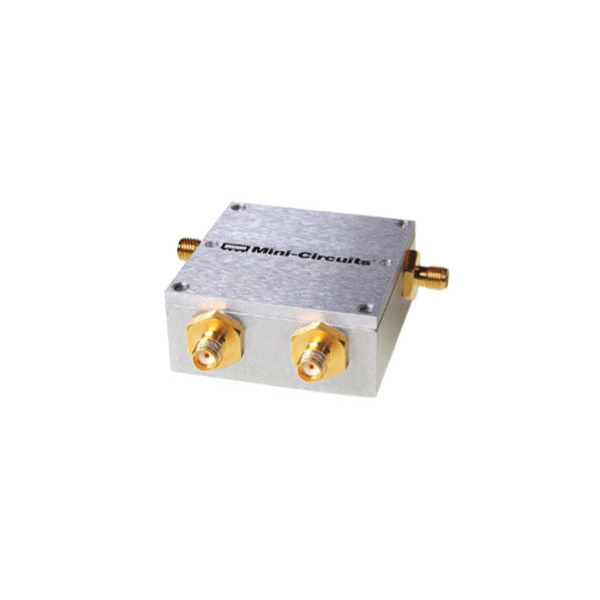

Техническое описание на ZFBDC20-13HP+ Направленный ответвитель : 50Ω Up to 20W 40 to 1000 MHz Maximum Ratings Coaxial Connections INPUT 1 OUTPUT 2 COUPLED (forward) 4 COUPLED (reverse) 3 Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C Features • excellent mainline loss, 0.4 dB typ. • excellent directivity, 23 dB typ. • high power, up to 20W • rugged shielded case Applications • power leveling & monitoring • GPS • cellular/PCS
