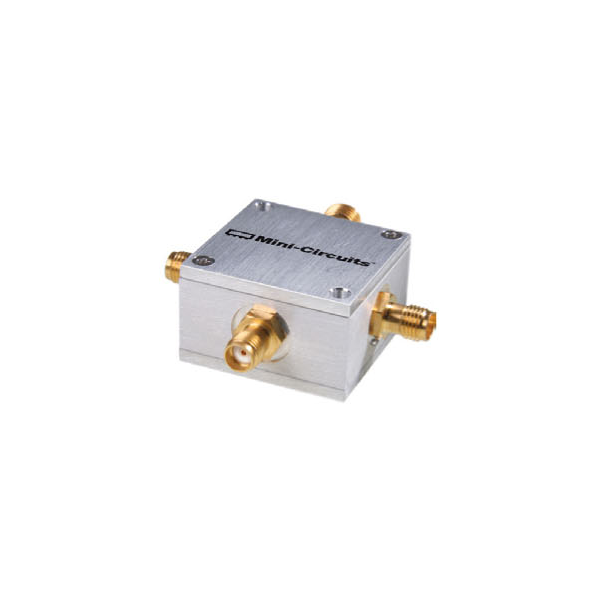

Техническое описание на ZFBDC20-970HP Направленный ответвитель : 50Ω Up to 10W 860 to 970 MHz Maximum Ratings Coaxial Connections INPUT 2 OUTPUT 3 COUPLED (forward) 1 COUPLED (reverse) S Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C Features • very low mainline loss, 0.1 dB typ. • excellent directivity, 28 dB typ. • excellent VSWR, 1.1: typ. • high power operation, 10W Applications • VSWR measurement • power monitoring of cellular transmitters • power levelling
