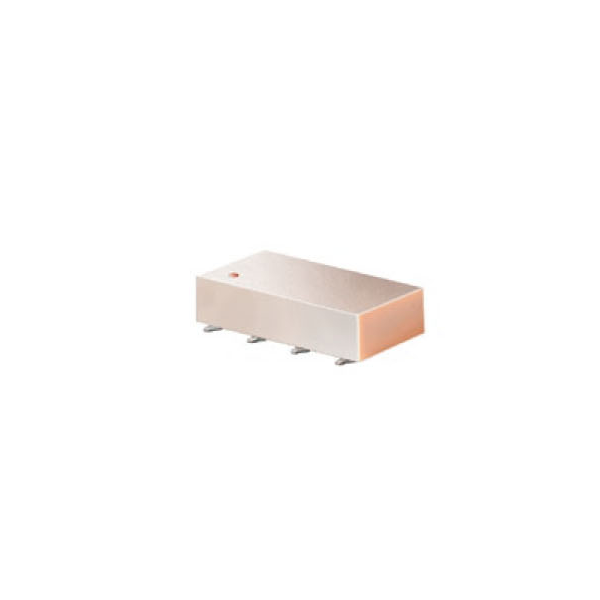

Техническое описание на SCM-2500LH Частотный смеситель : Level 10 (LO Power +10 dBm) 500 to 2500 MHz Operating Temperature -40°C to 85°C Storage Temperature -55°C to 100°C RF Power 50mW IF Current 40mA Features • low conversion loss, 5.6 dB typ. • wide bandwidth, 500 to 2500 MHz • high L-R isolation, 35 dB typ Applications • UHF • cellular • satellite distribution
