Описание

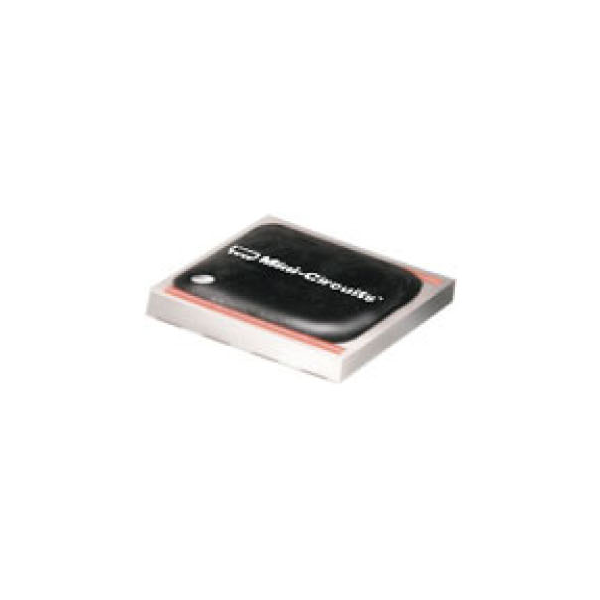

Техническое описание на SIM-193H+ Частотный смеситель : Level 17 (LO Power +17 dBm) 7.3 to 19 GHz Operating Temperature -40°C to 85°C Storage Temperature -55°C to 100°C RF Power 120mW Features • wide bandwidth, 7.3 to 19 GHz • low conversion loss, 6.2 dB typ. • high L-R isolation, 33 dB typ. • excellent IF BW, DC to 7.5 GHz • LTCC double balanced mixer • tiny size, low profi le, 0.08” • useable as up and down converter • aqueous washable • protected under U.S Patent 7,027,795 Applications • fi xed satellite • mobile • radio location
