Описание

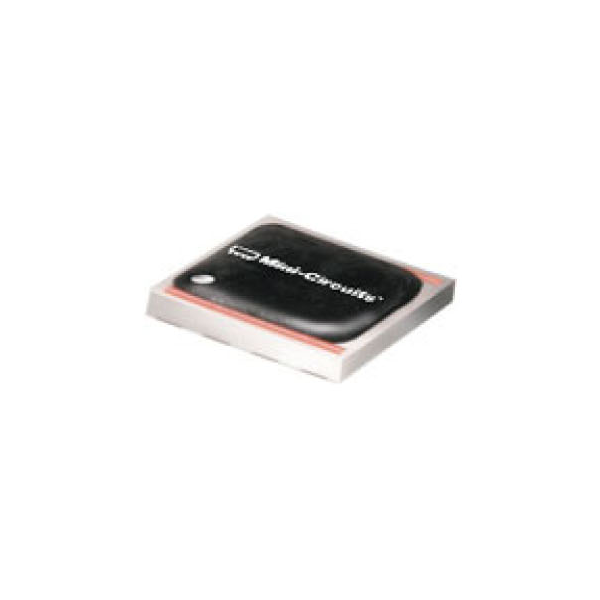

Техническое описание на SIM-792LH+ Частотный смеситель : Level 10 (LO Power +10 dBm) 2300 to 7900 MHz Operating Temperature -40°C to 85°C Storage Temperature -55°C to 100°C IF Power 50mW Features • wide bandwidth, 2300 to 7900 MHz • low conversion loss, 6.0 dB typ. • excellent IF BW, DC to 3000 MHz • LTCC double balanced mixer • tiny size, low profile, 0.08” • useable as up and down converter • protected by US patent 7,027,795 Applications • satellite up and down converters • defense radar and communications • line of sight links • ISM • WIFI • blue tooth • VSAT • ISM
