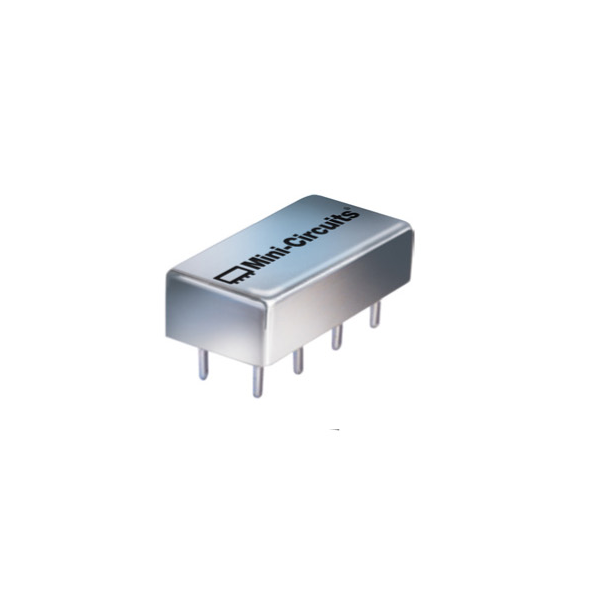

Техническое описание на SRA-3500+ Частотный смеситель : Level 7 (LO Power +7 dBm) 500 to 3500 MHz Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C RF Power 50mW IF Current 40mA Features • excellent conversion loss, 7.28 dB typ. • good L-R isolation, 30 dB typ. L-I isolation, 20 dB typ. • rugged welded construction • hermetically, sealed Applications • satellite distribution • MMDS • GSM/ISM • defense radar
