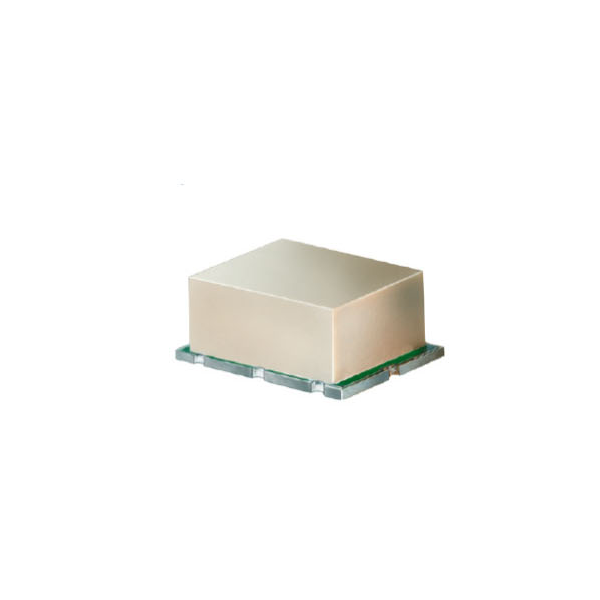

Техническое описание на SYM-10DH Частотный смеситель : Level 17 (LO Power +17 dBm) 800 to 1000 MHz Operating Temperature -40°C to 85°C Storage Temperature -55°C to 100°C RF Power 200mW IF Current 40mA Features • low conversion loss, 7.6 dB typ. • excellent L-R isolation, 45 dB typ. & L-I isolation, 29 dB typ. • high IP3, 31 dBm typ. • excellent LO & RF VSWR, 1.32:1 typ. excellent IF VSWR, 1.1:1 typ. Applications • cellular • ISM/SMR/GSM
