Описание

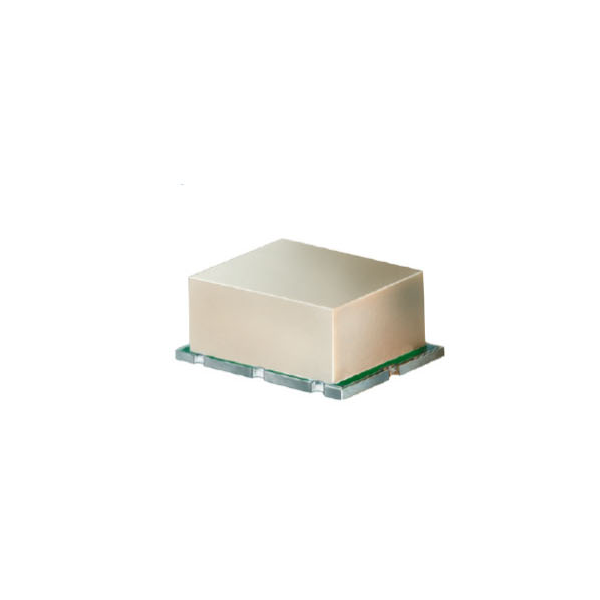

Техническое описание на SYM-30DHW Частотный смеситель : Level 17 (LO Power +17 dBm) 5 to 3000 MHz Operating Temperature -40°C to 85°C Storage Temperature -55°C to 100°C RF Power 200mW IF Current 40mA Features • wideband, 5 to 3000 MHz • good L-R isolation, 40 dB typ. • excellent L-I isolation, 44 dB typ. • wide IF bandwidth, useable to 3 GHz • high IP3, 26 dBm typ. Applications • CDMA • GSM • DCS • PCN
