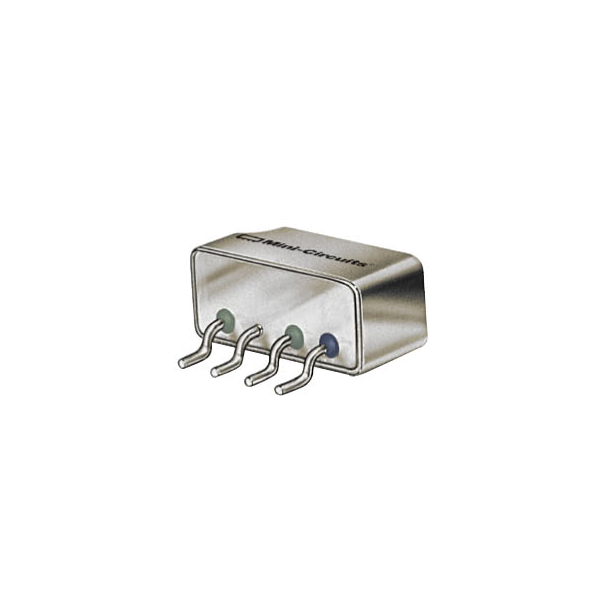

Техническое описание на TUF-3HSM+ Частотный смеситель : Level 17 (LO Power +17 dBm) 0.15 to 400 MHz Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C RF Power 200mW IF Current 40mA • low conversion loss, 5.0 dB typ. • good IP3, 22 dBm typ. • excellent L-R isolation, 50 dB typ.; L-I, 45 dB typ. • rugged welded construction • HF/VHF • defense & federal communications
