Описание

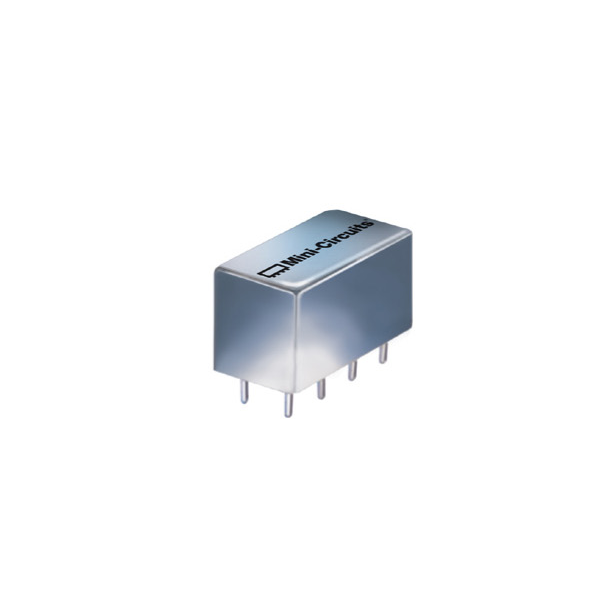

Техническое описание на UNCL-L1H Активный смеситель : Level 6 (LO Power +6 dBm) 10 to 500 MHz Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C RF Power 50mW IF Current 40mA Features • excellent conversion loss, 5.73 dB typ. • good L-R isolation, 36 dB typ., L-I isolation, 25 dB typ. • rugged welded construction • hermetically sealed • protected by US Patent, 6,943,629 Applications • VHF/UHF • transmitters
