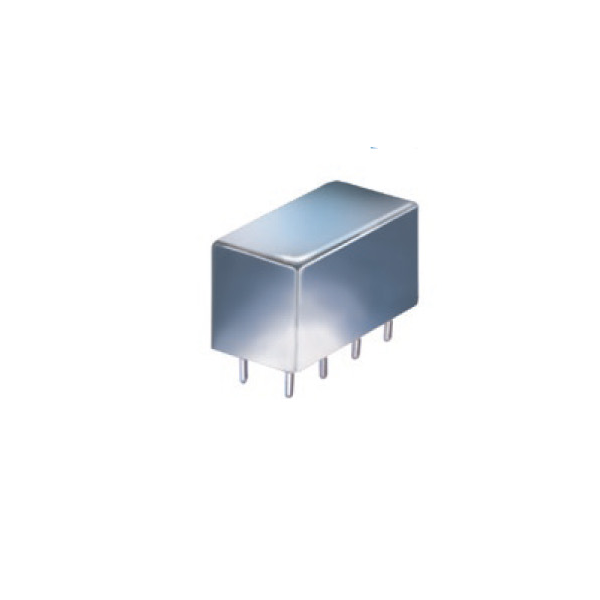

Техническое описание на PSC-3-2 Сплиттер : 3 Way-0° 50Ω 0.01 to 30 MHz Maximum Ratings Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C Power Input (as a splitter) 1W max. Internal Dissipation 0.375W max Features • low insertion loss, 0.15 dB typ. • high isolation, 40 dB typ. • rugged welded construction Applications • HF • amateur radio • communication systems
