Описание

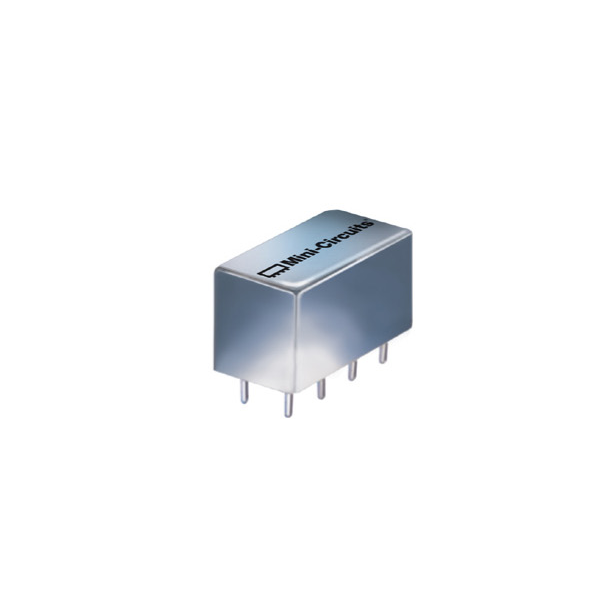

Техническое описание на PSC-4-1W+ Сплиттер : 4 Way-0° 50Ω 1 to 500 MHz Maximum Ratings Pin Connections SUM PORT 4 PORT 1 7 PORT 2 8 PORT 3 1 PORT 4 2 GROUND 3,5,6 CASE GROUND 3,5,6 Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C Power Input (as a splitter) 0.5W max. Internal Dissipation 0.250W max Features • low insertion loss, 0.5 dB typ. • good isolation, 27 dB typ. • rugged welded construction Applications • UHF/VHF • defense and federal communication
