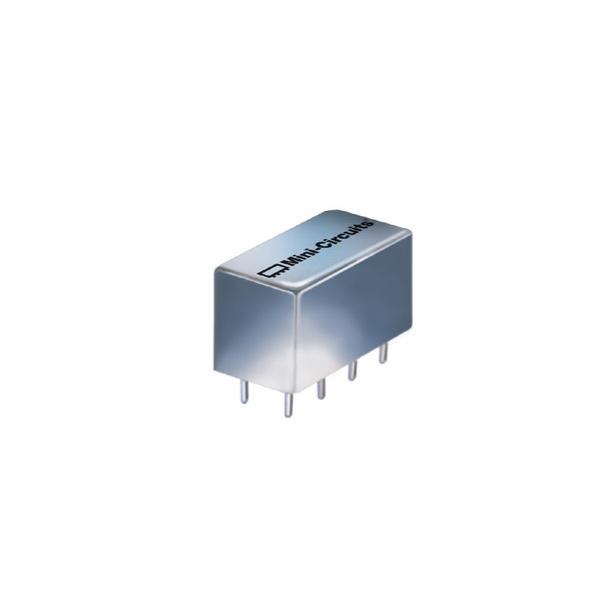

PSC-4-6+ Сплиттер

Техническое описание на PSC-4-6+ Сплиттер : 4 Way-0° 50Ω 0.01 to 40 MHz Maximum Ratings Pin Connections SUM PORT 4 PORT 1 7 PORT 2 8 PORT 3 1 PORT 4 2 GROUND 3,5,6 CASE GROUND 3,5,6 Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C Power Input (as a splitter) 1W max. Internal Dissipation 0.250W max. Features • low insertion loss, 0.3 dB typ. • good isolation, 32 dB typ. • rugged welded construction Applications • HF • ham radio • instrumentation
