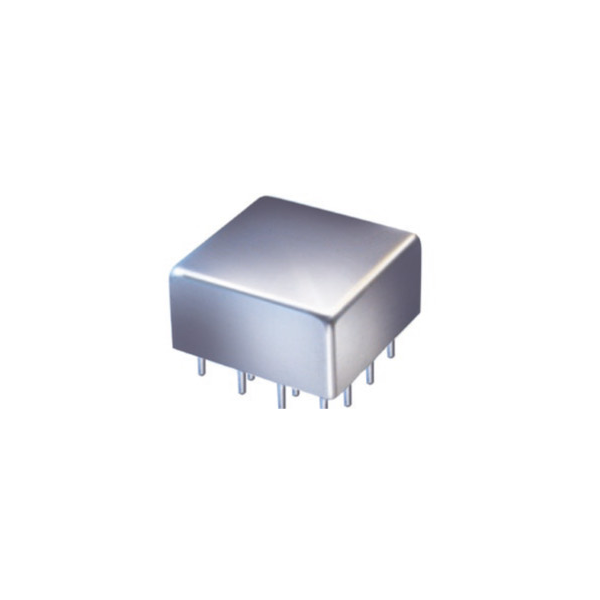

Техническое описание на PSC-4A-1W-75+ Сплиттер : 4 Way-0° 75Ω 30 to 600 MHz Maximum Ratings Pin Connections SUM PORT 2 PORT 1 8 PORT 2 12 PORT 3 5 PORT 4 9 GROUND 1,3,4,6,7,10,11,13,14,15,16 CASE GROUND 1,3,4,6,7,10,11,13,14,15,16 Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C Power Input (as a splitter) 1W max. Internal Dissipation 0.250W max. Features • wideband, 30 to 600 MHz • low insertion loss, 0.8 dB typ. • rugged welded construction Applications • VHF/UHF • instrumentation
