Описание

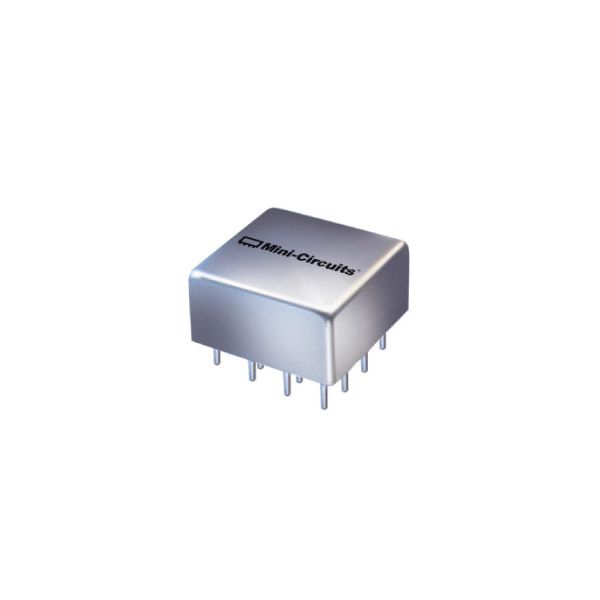

Техническое описание на PSC-6-1-75 Сплиттер : 6 Way-0° 75Ω 1 to 300 MHz Maximum Ratings Pin Connections SUM PORT 1 PORT 1 3 PORT 2 4 PORT 3 8 PORT 4 12 PORT 5 16 PORT 6 15 GROUND 2,5,7,11,13,14 CASE GROUND 2,5,7,11,13,14 NOT USED 6,9,10 Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C Power Input (as a splitter) 1W max. Internal Dissipation 0.5W max Features • low insertion loss, 0.6 dB typ. • high isolation, 30 dB typ. • excellent amplitude unbalance, 0.3 dB typ. • rugged welded case Applications • VHF • radio communication • instrumentation
