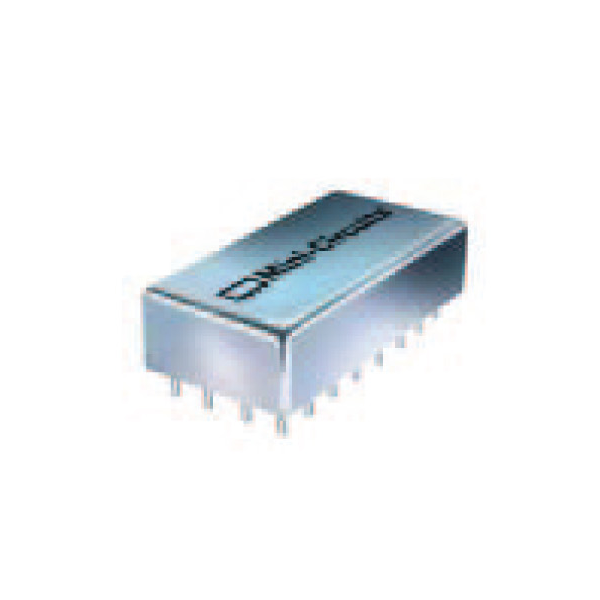

Техническое описание на PSC-8A-4 Сплиттер : 8 Way-0° 50Ω 5 to 500 MHz Maximum Ratings Pin Connections SUM PORT 29 PORT 1 7 PORT 2 16 PORT 3 31 PORT 4 24 PORT 5 9 PORT 6 2 PORT 7 26 PORT 8 17 GROUND all other pins CASE GROUND all other pins NOT USED 15 Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C Power Input (as a splitter) 1W max. Internal Dissipation 0.62W max Features • wideband, 5 to 500 MHz • good isolation, 23 dB typ. • rugged welded construction • excellent amplitude unbalance. 0.3 dB typ. Applications • VHF/UHF • defense and federal communications
