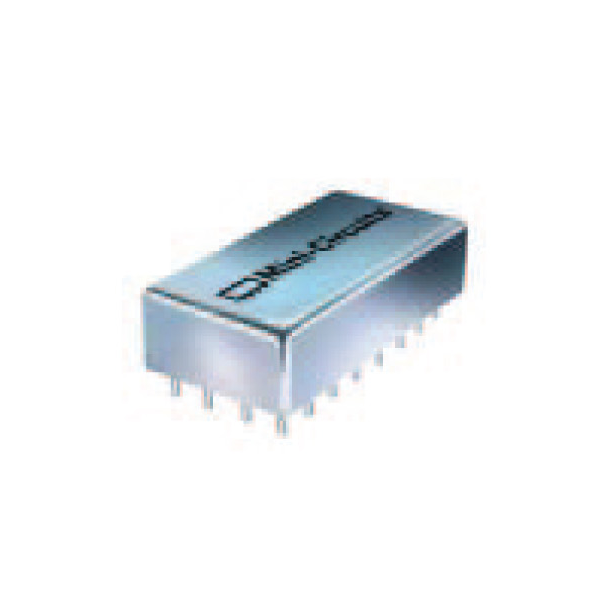

Техническое описание на PSC-8A4-75 Сплиттер : 8 Way-0° 75Ω 1 to 300 MHz Maximum Ratings Pin Connections SUM PORT 29 PORT 1 7 PORT 2 16 PORT 3 31 PORT 4 24 PORT 5 9 PORT 6 2 PORT 7 26 PORT 8 17 GROUND all other pins CASE GROUND all other pins NOT USED 15 Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C Power Input (as a splitter) 1W max. Internal Dissipation 0.62W max. Features • wideband, 1 to 300 MHz • low insertion loss, 0.7 dB typ. • high isolation, 30 dB typ. • rugged welded construction Applications • VHF • radio communications
