Описание

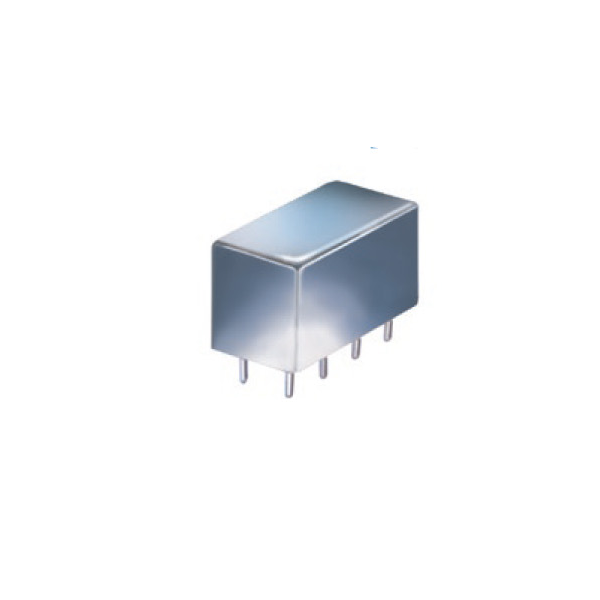

Техническое описание на PSCQ-2-50+ Сплиттер : 2 Way-90° 50Ω 25 to 50 MHz Maximum Ratings Pin Connections SUM PORT 1 PORT 1 (+90°) 2 PORT 2 (0°) 5 GROUND 3,4,7,8 CASE GROUND 3,4,7,8 50 OHM TERM EXTERNAL 6 Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C Power Input (as a splitter) 1W max Features • low insertion loss, 0.3 dB typ. • high isolation, 30 dB typ. • rugged shielded case Applications • modulators • balanced amplifiers
