Описание

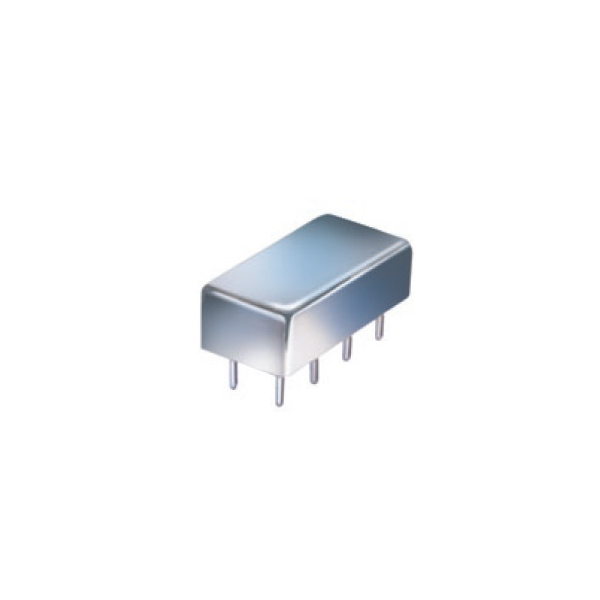

Техническое описание на PSCQ-2-51W+ Сплиттер : 2 Way-90° 50Ω 5 to 50 MHz Maximum Ratings Pin Connections SUMPORT 1 PORT 1 (0°) 5 PORT 2 (+90°) 6 GROUND 2,3,4,7,8 Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C Power Input (as a splitter) 0.5W max. Features • 10:1 bandwidth • excellent amplitude unbalance, 0.15 dB typ. and phase unbalance, 1.0 deg. typ. • very low insertion loss, 0.5 dB typ. • excellent VSWR, 1.21 typ. • excellent isolation, 41 dB typ. Applications • short wave • land mobile
