Описание

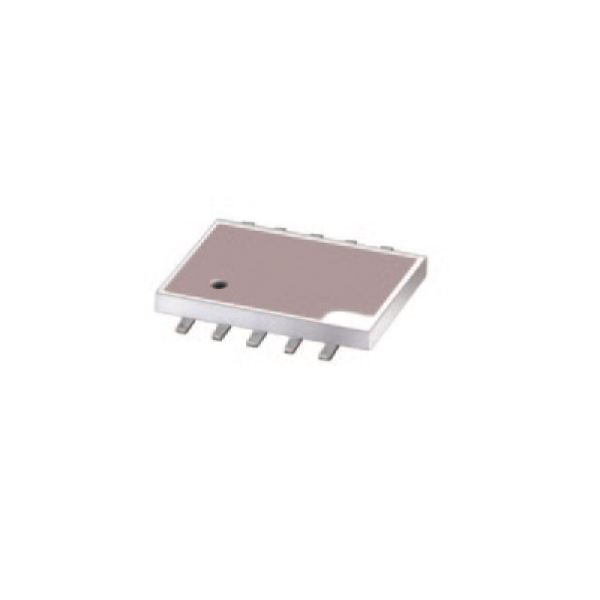

Техническое описание на QBA-12 Сплиттер : 2 Way-90° 50Ω 800 to 1200 MHz Maximum Ratings Pin Connections SUM PORT 1 PORT 1 (+90°) 10 PORT 2 (0°) 6 GROUND 2,3,4,7,8,9 50 OHM TERM EXTERNAL 5 Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C Features • low insertion loss, 0.25 dB typ. • high power capability, 50W • isolation, 23 dB typ. • ceramic body, good for heat dissipation • solder plated leads for excellent solderability • aqueous washable • protected by U.S. Patent 5,534,830 Applications • cellular • ISM
