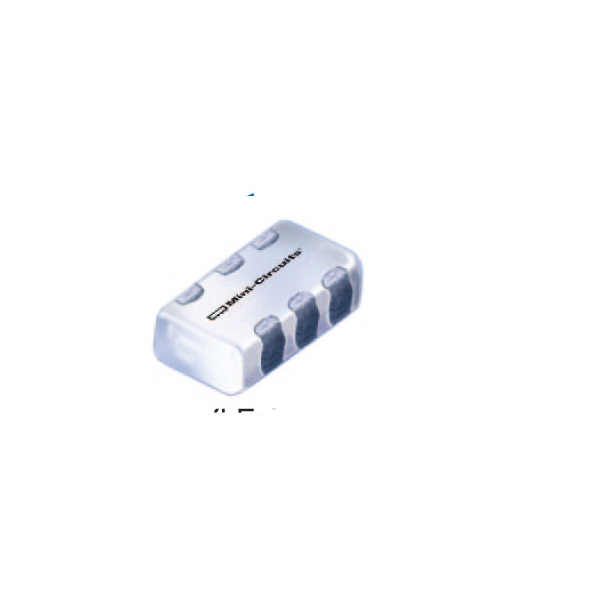

Техническое описание на QCN-19D Сплиттер : 2 Way-90° 50Ω 1100 to 1925 MHz Maximum Ratings Pin Connections SUM PORT 1 PORT 1 (0°) 4 PORT 2 (+90°) 6 GROUND 2,5 50 OHM TERM EXTERNAL 3 Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C Power Input (as a splitter) 15W* max. Features • low insertion loss, 0.4 dB typ. • high isolation, 26 dB typ. • wrap-around terminal for excellent solderability • ultra small, 0.12"X0.06"X0.035" • patent pending Applications • GPS • PCS/DCS • balanced amplifi ers • modulators
