Описание

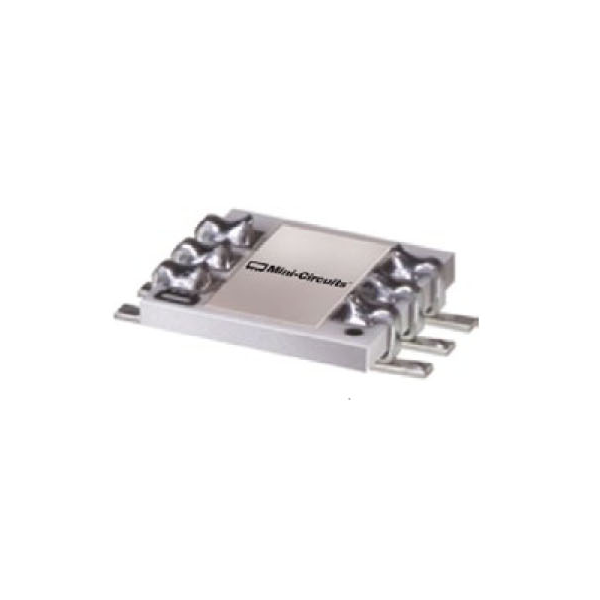

Техническое описание на SBB-2-13 Сплиттер : 2 Way-0° 50Ω 950 to 1300 MHz Maximum Ratings Operating Temperature -40°C to 85°C Storage Temperature -55°C to 100°C Power Input (as a splitter) 10W max. Internal Dissipation 0.25W max. Features • very stable performance over temp. range • excellent insertion loss, 0.6 dB typ. • excellent isolation, 24 dB typ. • solder plated leads for excellent solderability and strain relief • small size, 0.2"X0.275"X0.07" • very low cost • aqueous washable • protected by U.S Patent, 6,819,202 Applications • satellite communications • aeronautical
