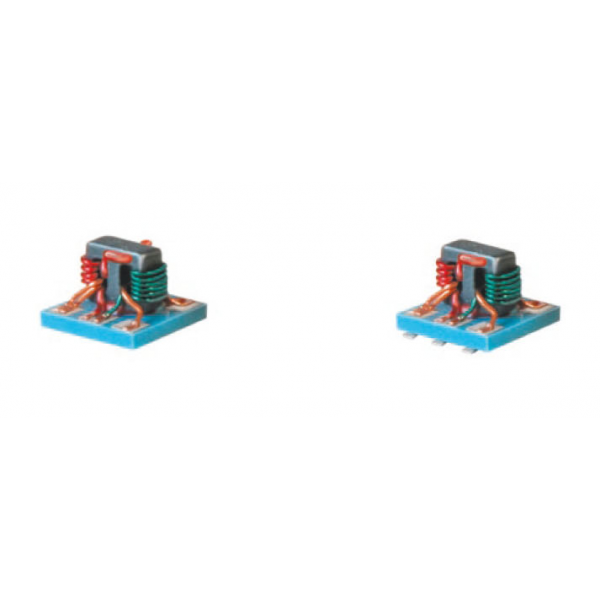

Техническое описание на SBTC-2-20L+ Сплиттер : 2 Way-0° 50Ω 200 to 2000 MHz Maximum Ratings Pin Connections SUM PORT 6 PORT 1 3 PORT 2 4 GROUND 1,2 NOT USED 5 OperatingTemperature -40°C to 85°C StorageTemperature -55°C to 100°C Power Input (as a splitter) 0.5W max. Internal Dissipation 0.125W max. Features • cellular/GSM • UHF/VHF receivers/transmitters • PCN/PCS • GPS • VSAT • wide band frequency, 200-2000 MHz • excellent amplitude unbalance, 0.2 dB typ. • small size, 0.166”x0.15”x0.155” • temperature stable LTCC base • small size • low cost • aqueous washable • protected by US patent 6,963,255
