Описание

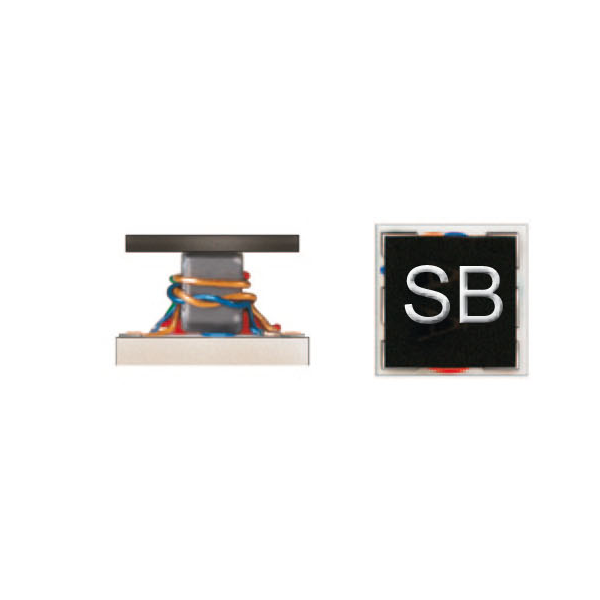

Техническое описание на SBTCJ-1WX+ Сплиттер : 2 Way-180° 50Ω 1 to 750 MHz Maximum Ratings Operating Temperature -40°C to 85°C Storage Temperature -55°C to 100°C Power Input (as a splitter) 0.5W max. Internal Dissipation 0.125W max. Features • low insertion loss, 0.7 dB typ. • good isolation, 23 dB typ. • good VSWR, 1.25 typ. all ports • small size, 0.15X0.15"X0.15" • temperature stable, LTCC base • low cost • protected by US Patent, 6,806,790 Applications • cellular • UHF/VHF receivers/transmitters • protected by US Patent, 6,806,790
