Описание

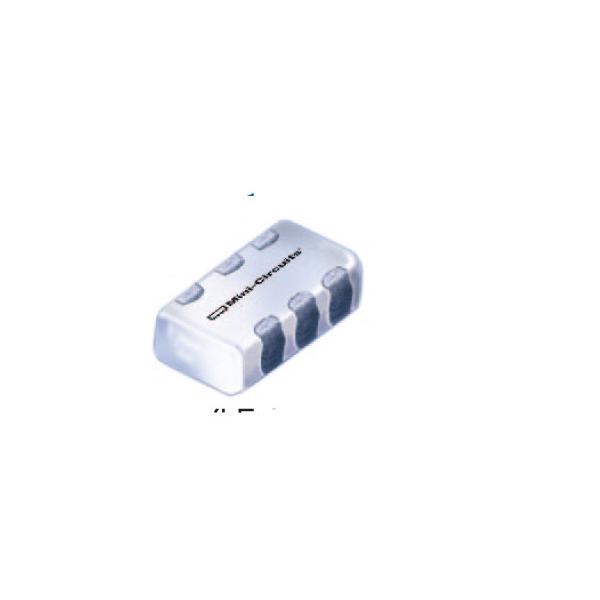

Техническое описание на SCN-2-15 Сплиттер : 2 Way-0° 50Ω 1100 to 1450 MHz Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C Power Input (as a splitter) 20W* max Features • isolation resistor, external 100 ohms • low insertion loss, 0.4 dB typ. • excellent amplitude unbalance, 0.2 dB typ. • excellent phase unbalance, 1.5 deg. typ. • high isolation, 25 dB typ. • excellent power handling, 20W as splitter • small size, 0.12”X0.06”X0.035” • ESD non-sensitive • temperature stable LTCC technology • wrap around terminations for excellent solderability • low cost • protected by US patent 6,967,544 Applications • satellite distribution • GPS
