Описание

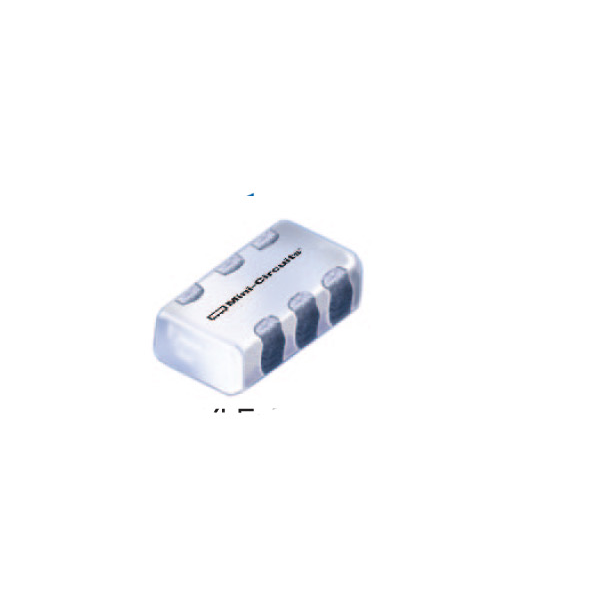

Техническое описание на SCN-2-19-5+ Сплиттер : 2 Way-0° 50Ω 1385 to 1900 MHz Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C Power Input (as a splitter) 20W* max. Features • isolation resistor, external 100 ohms • low insertion loss, 0.5 dB typ. • excellent amplitude unbalance, 0.1 dB typ. • excellent phase unbalance, 1.0 deg. typ. • high isolation, 22 dB typ. • excellent power handling, 20W as splitter • small size, 0.12”X0.06”X0.035” • ESD non-sensitive • temperature stable LTCC technology • wrap around terminations for excellent solderability • low cost • patent pending Applications • GSM • ISM • cellular • LTE
