Описание

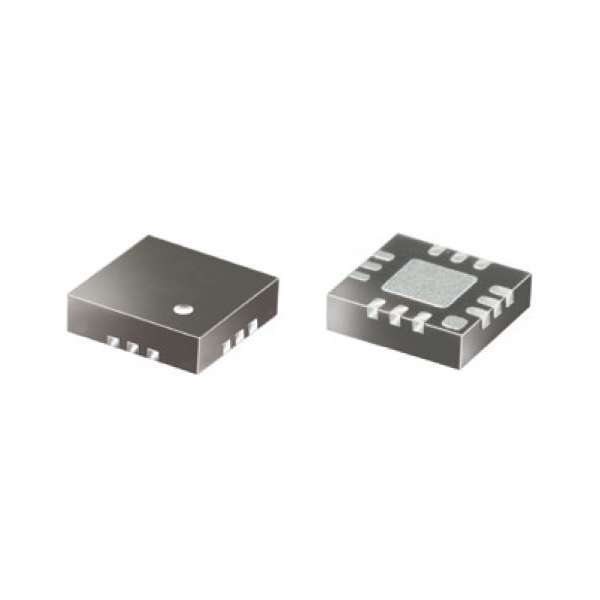

Техническое описание на WP4W+ Сплиттер : 4 Way-0° 50Ω 3300 to 3800 MHz Maximum Ratings Pad Connections SUM PORT 2 PORT 1 12 PORT 2 10 PORT 3 6 PORT 4 4 GROUND 1,3,5,7,8,9,11, paddle Operating Temperature -40°C to 85°C Storage Temperature -65°C to 150°C Power Input (as a splitter) 1.5W max. Internal Dissipation 0.375W max Features • excellent isolation, 26 dB typ. • good phase unbalance, 2 deg. typ. • good amplitude unbalance, 0.15 dB typ. • small size, .118" x .118" x .035" • high ESD level • aqueous washable Applications • WIMAX
