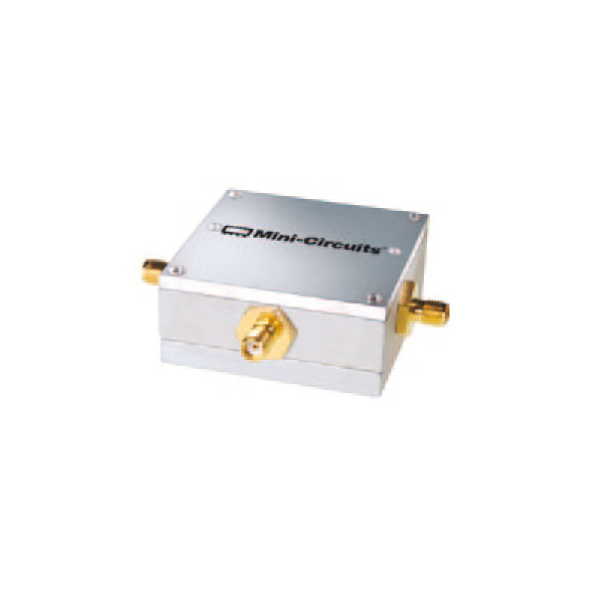

Техническое описание на ZA3PD-1-N Сплиттер : 3 Way-0° 50Ω 500 to 1000 MHz Maximum Ratings Coaxial Connections SUM PORT S PORT 1 1 PORT 2 2 PORT 3 3 Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C Power Input (as a splitter) 10W max. Internal Dissipation 0.375W max Features • wideband, 500 to 1000 MHz • up to 10W power input as splitter • low insertion loss, 0.3 dB typ. • rugged, shielded case Applications • UHF • cellular • communication system • instrumentation
