Описание

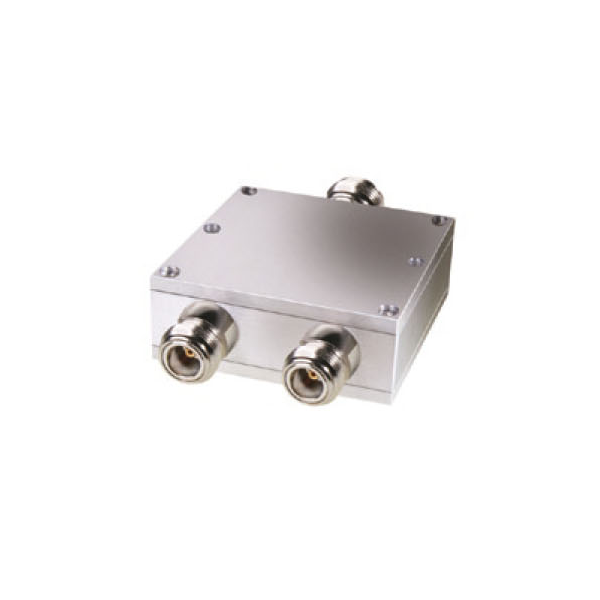

Техническое описание на ZAPD-162-75+ Сплиттер : 2 Way-0° 75Ω 600 to 1600 MHz Maximum Ratings Coaxial Connections SUMPORT S PORT 1 1 PORT 2 2 Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C Power Input (as a splitter) 10W max. Internal Dissipation 0.125W max. Features • very wide bandwidth, 600-1600 MHz • low insertion loss, 0.3 dB typ. • good isolation, 32 dB typ. • excellent output VSWR, 1.25:1 typ. • excellent output VSWR, 1.20:1 typ. Applications • cable TV • ISM
