Описание

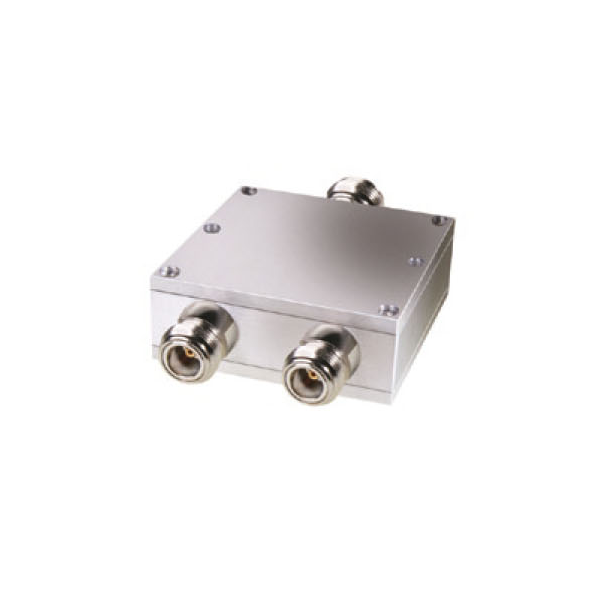

Техническое описание на ZAPD-1750-N+ Сплиттер : 2 Way-0° 50Ω 950 to 1750 MHz Maximum Ratings Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C Power Input (as a splitter) 10W max. Internal Dissipation 0.125W max Features • low insertion loss, 0.2 dB typ. • high isolation, 30 dB typ. • up to 10W power input as splitter • excellent amplitude unbalance, 0.1 dB typ. • excellent phase unbalance, 0.5 deg. typ. • excellent VSWR, 1.1:1 typ. • rugged shield case Applications • cellular • GPS • satellite distribution • communications systems
