Описание

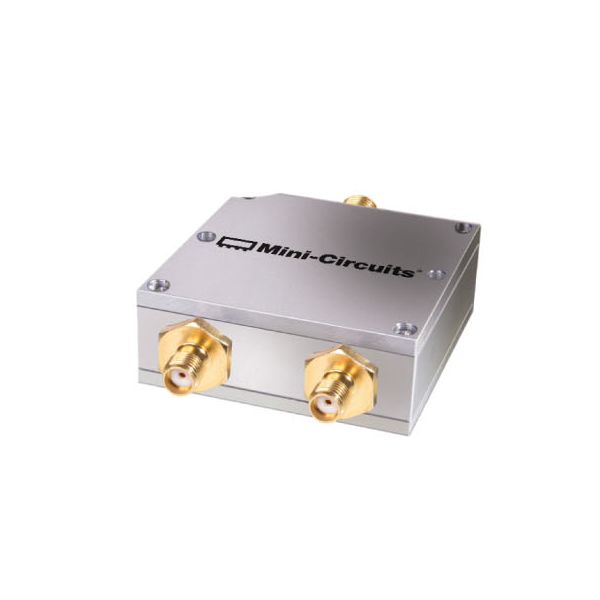

Техническое описание на ZAPD-2-21-3W-S Сплиттер : 2 Way-0° 50Ω 700 to 2100 MHz Maximum Ratings Coaxial Connections SUM PORT S PORT 1 1 PORT 2 2 Operating Temperature -55°C to 90°C Storage Temperature -55°C to 100°C Features • wideband, 700-2100 MHz • low insertion loss, 0.4 dB typ. • good isolation, 25 dB typ. • good amplitude unbalance, 0.05 dB typ. and phase unbalance, 0.7 deg. typ. Applications • LMDS • UHF • VSAT • PCS • GPS • cellular
