Описание

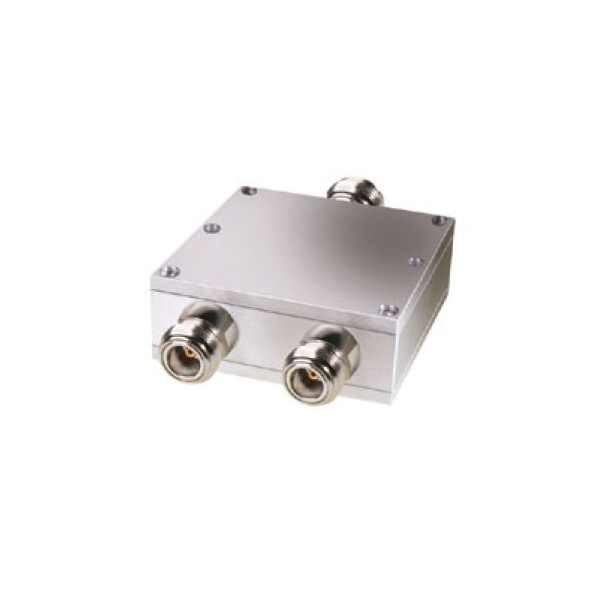

Техническое описание на ZAPD-2-22-75+ Сплиттер : 2 Way-0° 75Ω 910 to 2150 MHz Maximum Ratings Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C Power Input (as a splitter) 5W max. Internal Dissipation 0.25W max Features • wideband, 910 to 2150 MHz • low insertion loss, 0.2 dB typ. • high isolation, 30 dB typ. • up to 5W power input as splitter • excellent amplitude unbalance, 0.1 dB typ. • excellent phase unbalance, 0.5 deg. typ. • excellent VSWR, 1.1:1 typ. • rugged shielded case Applications • communications systems • cellular • catv • GPS
