Описание

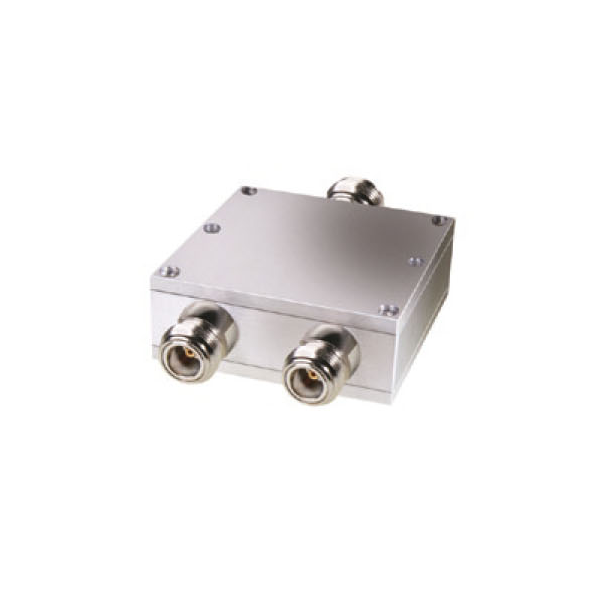

Техническое описание на ZAPD-50W-N+ Сплиттер : 2 Way-0° 50Ω 4200 to 6000 MHz Maximum Ratings Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C Power Input (as a splitter) 10W max. Internal Dissipation 0.125W max. Features • low insertion loss, 0.3 dB typ. • good isolation, 26 dB typ. • up to 10W power input as splitter • excellent amplitude unbalance, 0.1 dB typ. • excellent phase unbalance, 1 deg. typ. • excellent VSWR, 1.15:1 typ. • rugged shielded case Applications • wireless • defense • communications
