Описание

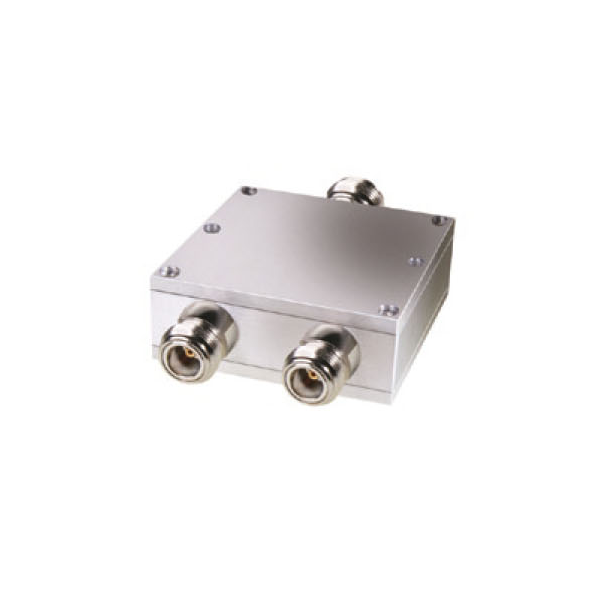

Техническое описание на ZAPD-900-5W-S+ Сплиттер : 2 Way-0° 50Ω 100 to 900 MHz Maximum Ratings Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C Power Input (as a splitter) 5W max. Internal Dissipation 1W max. Features • wideband, 100 to 900 MHz • low insertion loss, 0.3 dB typ. • good isolation, 26 dB typ. • up to 5W power input as splitter • excellent amplitude unbalance, 0.1 dB typ. • excellent phase unbalance, 1 deg. typ. • rugged shielded case Applications • VHF/UHF • communication systems • instrumentation
