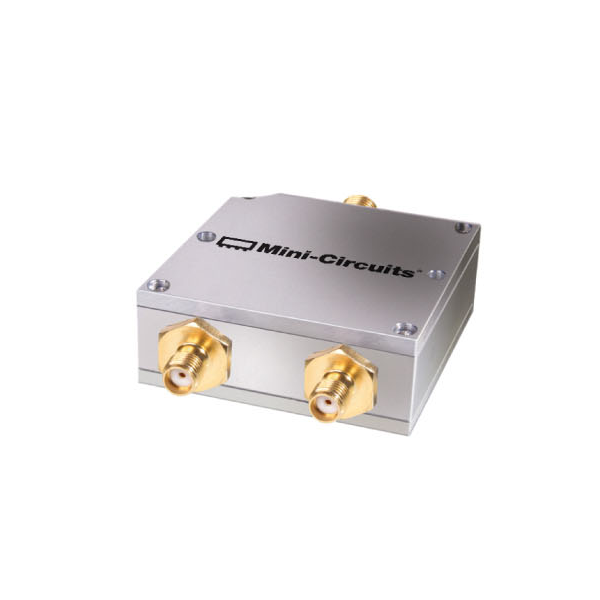

Техническое описание на ZAPDQ-2-S Сплиттер : 2 Way-90° 50Ω 1000 to 2000 MHz Maximum Ratings Pin Connections SUM PORT S PORT 1 (0°) 1 PORT 2 (+90°) 3 Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C Power Input (as a splitter) 1W max. Internal Dissipation 0.125W max Features • low insertion loss, 0.4 dB typ. • good isolation, 22 dB typ. • rugged shielded case Applications • balanced amplifiers • modulators • test set-ups
