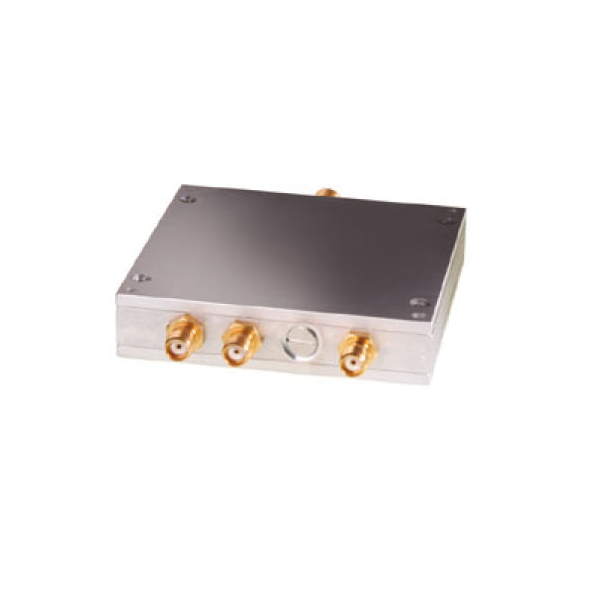

Техническое описание на ZB3PD-2400W-S+ Сплиттер : 3 Way-0° 50Ω 700 to 2400 MHz Maximum Ratings Coaxial Connections SUM PORT S PORT 1 1 PORT 2 2 PORT 3 4 Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C Power Input (as a splitter) 1W max. Internal Dissipation 0.250W max. Features • wideband, 700 to 2400 MHz • good isolation, 25 dB typ. • excellent input VSWR. 1.3 typ. • excellent output VSWR, 1.1 typ. Applications • cellular • PCN • instrumentation
