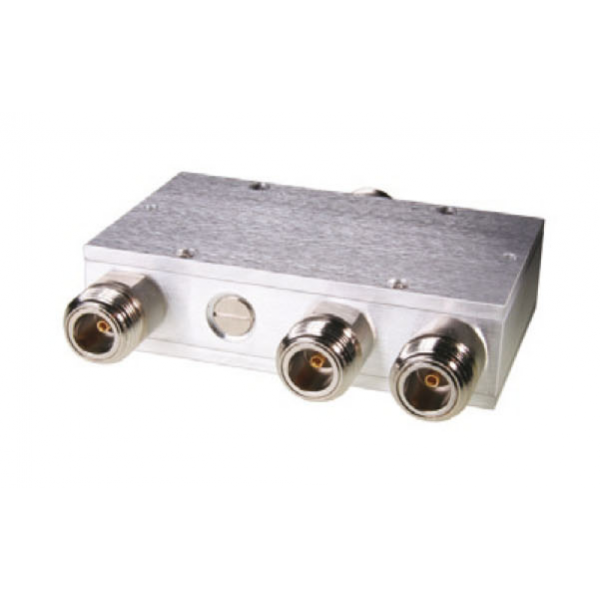

Техническое описание на ZB3PD1-222-S+ Сплиттер : 3 Way-0° 50Ω 500 to 2200 MHz Maximum Ratings Coaxial Connections SUM PORT S PORT 1 1 PORT 2 2 PORT 3 3 Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C Power Input (as a splitter) 10W max. Internal Dissipation 0.5W max. Features • wideband, 500-2200 MHz • good isolation, 25 dB typ. • excellent input VSWR, 1.15:1 typ. • excellent output VSWR, 1.1:1 typ. • low insertion loss 0.3 dB typ. Applications • cellular • PCN • instrumentation
