Описание

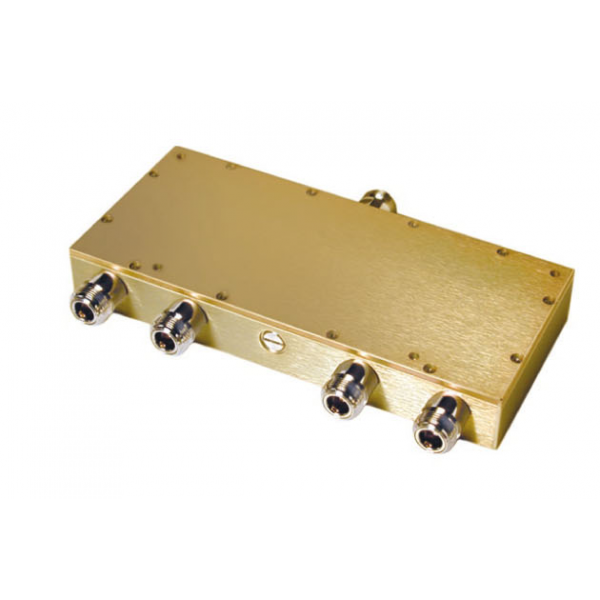

Техническое описание на ZB4CS-870-10W-S Сплиттер : 4 Way-0° 50Ω 570 to 870 MHz Operating Temperature -55°C to 90°C Storage Temperature -55°C to 100°C Features • high power, up to 10W input power • low insertion loss, 0.3 dB typ. • high isolation, 28 dB typ. • good sum-port VSWR, 1.1 typ. • good VSWR at ports 1-4, 1.15 typ. Applications • tv broadcast • UHF
