Описание

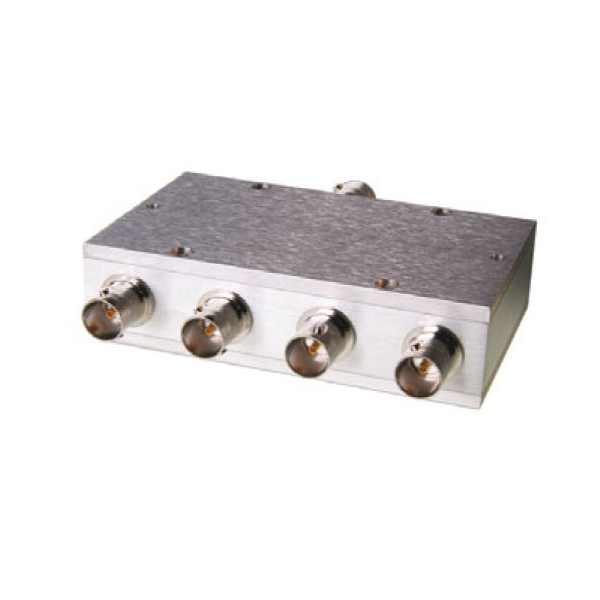

Техническое описание на ZB4PD1-32-75+ Сплиттер : 4 Way-0° 75Ω 0.25 to 300 MHz Maximum Ratings Coaxial Connections SUM PORT S PORT 1 1 PORT 2 2 PORT 3 3 PORT 4 4 Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C Power Input (as a splitter) 1W max. Internal Dissipation 0.250W max Features • wideband, 0.25 to 300 MHz • high isolation, 36 dB typ. • excellent amplitude unbalance, 0.05 dB typ. • excellent phase unbalance, 0.5 deg. typ. • rugged, shielded case Applications • VHF/UHF • radio communication
