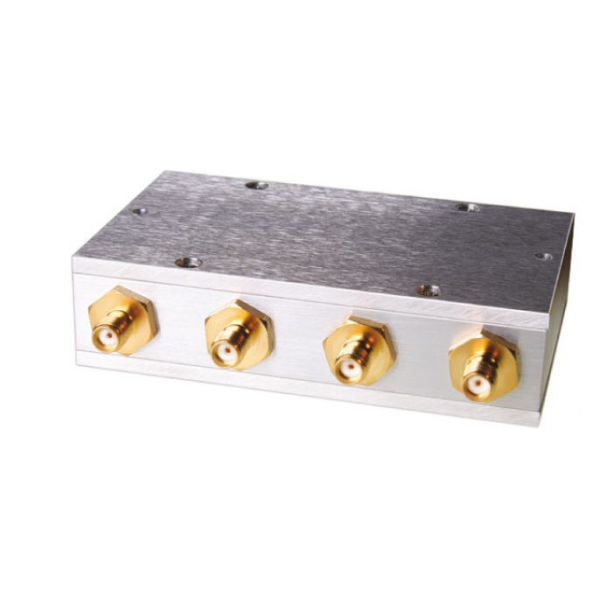

Техническое описание на ZB4PD1-8.4-S+ Сплиттер : 4 Way-0° 50Ω 6700 to 8400 MHz Maximum Ratings Coaxial Connections SUM PORT S PORT 1 1 PORT 2 2 PORT 3 3 PORT 4 4 Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C Power Input (as a splitter) 10W max. Internal Dissipation 0.375W max Features • wideband, 6700 to 8400 MHz • high isolation, 29 dB typ. • excellent VSWR • up to 10W power input as a splitter Applications • CATV • defense communications
