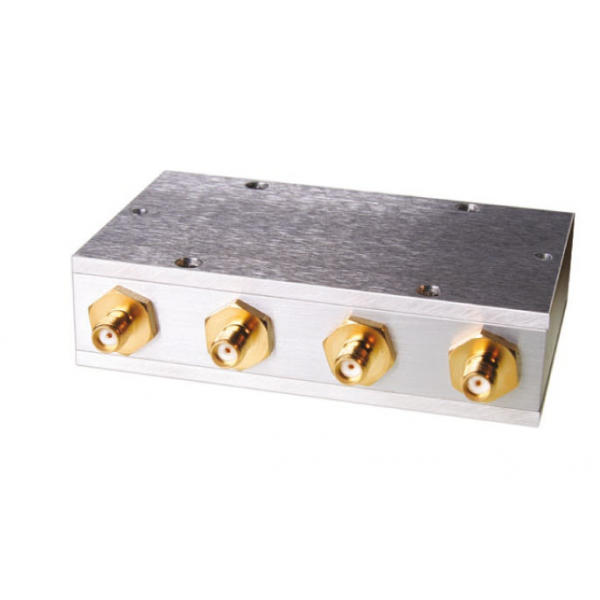

Техническое описание на ZB4PD1-930W-S Сплиттер : 4 Way-0° 50Ω 725 to 1050 MHz Maximum Ratings Coaxial Connections SUM PORT S PORT 1 1 PORT 2 2 PORT 3 3 PORT 4 4 Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C Power Input (as a splitter) 10W max. Internal Dissipation 0.375W max. Features • excellent output VSWR, 1.1:1 typ • up to 10W power input as splitter Applications • cellular • GSM • receivers/transmitters
