Описание

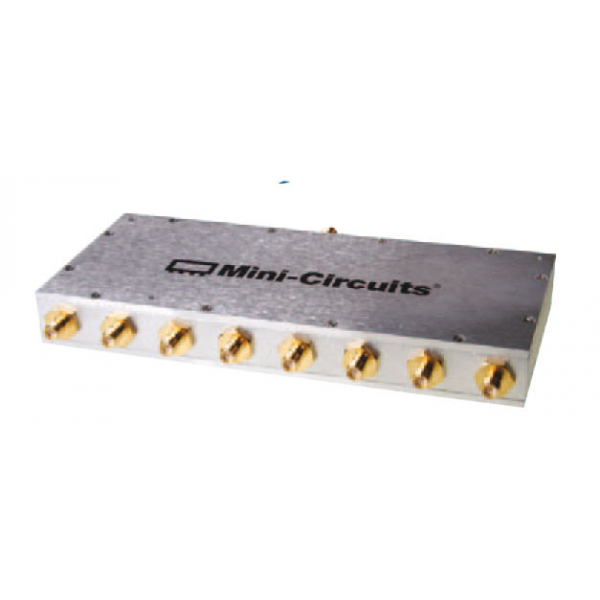

Техническое описание на ZB8PD-252-S+ Сплиттер : 8 Way-0° 50Ω 1550 to 2500 MHz Maximum Ratings Coaxial Connections SUM PORT S PORT 1,2,3,4,5,6,7,8 1,2,3,4,5,6,7,8 Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C Power Input (as a splitter) 10W max. Internal Dissipation 0.875W max. Features • low insertion loss, 0.8 dB typ. • good isolation, 25 dB typ. • up to 10W power input • rugged, shielded case Applications • cellular • PCS/DCS • communication systems • GPS
